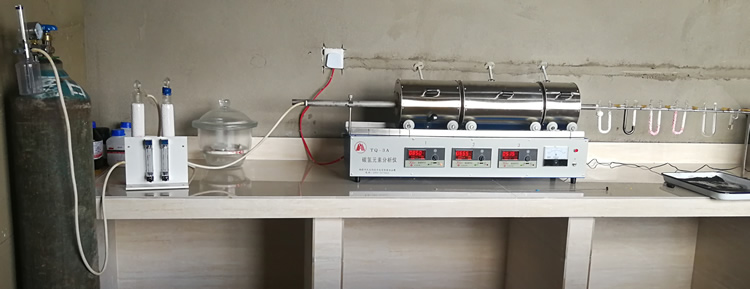

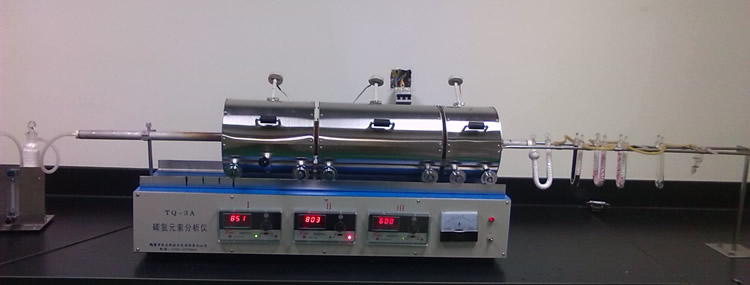

TQ - 3A type hydrocarbon element analyzer
Applicable to coal,electricity and teaching,scientific research,etc and the department of coal or other organisms were the content of hydrogen and carbon.
Determination of coal quality of absorption in other organisms,or the content of hydrogen and carbon.
Three independent automatic constant temperature control system,which can set arbitrary,different control temperature.
Digital temperature display,direct,precise and stable and reliable. And two samples.
The structural design is reasonable,good appearance,easy operation,and maintainability.
Range: carbon (1-100) %,hydrogen (0 ~ 20 )%.
Measuring precision GB/T476-2001
Temperature measurement precision: 0.2
Control temperature range (100~1100)℃
Temperature-control accuracy ± 10℃ .
The first quarter furnace chamber temperature: 850℃ ,rated power: 1200W,thermostatic warden: 60mm
The second section furnace chamber temperature: 800℃ ,rated power 1500W,thermostatic warden: 80mm :
The third quarter furnace chamber temperature: 600℃ ,rated power: 800W.
Work power: AC 220V ± 22V ,50Hz ± 1Hz
Shape dimension (mm) : 1200 × 350 × 450
Weight: 53 ㎏
Determination of carbon and hydrogen instrument：
Determination of carbon and hydrogen instrument link:
