Electric heating process temperature automatic control system, automatic zero, automatic judgment test process, and timely titrate exit, the instrument can be automatically preserve 2.6 times of experimental data, automatic refresh, power is not lost data. The instrument has simple operation, high automatic degree and the rapid, accurate determination, small volume etc, and is currently, metallurgy, electric power, coal and other department laboratory sulfur detection instruments.
Main technical indicators
[1] Measurement range of total sulfur: 0.01-40%
[2] The sample combustion analysis time is 3-8 minutes, and the end point of titration is automatically judged and returned.
[3] Temperature control: 500-1150 ℃ ±3℃ can be controlled.Temperature measurement: accuracy 0.5;The heating body is silicon carbon tube, the length of the high temperature zone is ≥90 mm, and the temperature is 1050℃±5℃(the temperature can be adjusted according to the need).
[4] Heating rate: 25-30 ℃/ min, up to 1200℃ in about 35 minutes.
[5] Electrolytic cell: volume 450 ml, metal platinum electrode.
[6] Stability of the instrument: it enters a stable state within one minute after starting.
[7] Rated power supply: 220V±20% 50Hz.
The working principle
Under article 1050 ℃ high temperature, by testing the samples in the purification of air flow in the combustion, decomposition of various forms of sulfur in coal were burning out, by air flow to the electrolytic cell formation H2SO3 combined with water, because of its damage the original iodine - iodine ions in the electrolytic cell for dynamic balance, instrument immediately output current electrolysis produce iodine, potassium iodide solution To restore the original dynamic equilibrium, which is the Coulomb titration in GB/T214-1996.The amount of current required to return to the original dynamic equilibrium is related to the combustion decomposition of sulfur in the sample, which can be measured and calculated by a microprocessor.
Instrument Installation:
Open the packing case, you will see the three parts of the instrument, i.e. controller, furnace body and purification absorber.
1、Furnace body installation: First install the silicon carbide tube. Be sure that the two sheet metals are 3mm away from the edge of silicon carbide tube. Put two ceramic pads in the middle of the sheet metal for preventing short circuit and silicon carbide tube damage. Correctly position the ceramic pads of the screw, or else short circuit may be caused. Then fasten the screw. The screws on both sides shall be simultaneously fastened with the same space kept. The degree of screw tightness must be proper. If too loose, sparking may occur, if too tight, the silicon carbide tube may break. The best practice is to refasten them after one month of use, or add a screw cap between the sheet metals. Then screw the wires of the two silicon carbide tubes and secure them with screw cap. If the insulation bowl is loose, screw the wire to tighten it until there is no space. Avoid bare copper wire from electric leakage. 2、Take down the left round shied to see whether there are sundries in the furnace body and whether it is clean. Then feed the silicon carbide tube into the furnace body until it can not move forward. Then slightly lift it up to movie it inward more until it is on a step. Then install the left shied and fasten its screw while shaking the silicon carbide tube to prevent blocking and breaking the latter. Ensure that after 4 screws are tightened, the silicon carbide tube is also movable. Then insert the reducing pipe, also slightly lift it up to move it inward more onto the step. Then fasten the left retaining screw to secure the reducing pipe. Also pay attention that whether the reducing pipe at right feed port is consistent with the furnace body itself. Avoid dislocation, or the sample may be blocked in the experiment. Connect the wire of thermocouple and screw the several screws of the thermocouples tight. After that, insert the thermocouple into the thermocouple hole in the furnace body. Then lift the silicon carbide tube by hand to see whether the thermocouple moves. If not, it means the thermocouple is not in place. At last, after it is in place, draw it back for 1mm. Fasten the screw to secure it. 3、Installation of purifier and electrolytic tank: Pay attention to the connection order of rubber tubes. The reducing pipe and two-way valve are linked with silicone tube. It would be best to apply vaseline over the two-way valve, so that it will be sealed better. Connect the two-way valve with one of connector with solution plate of the electrolytic tank at one way, and with the purifier at the other way. The bottom port of the electrolytic tank is connected with a section of rubber tube and clamped with a water sealing clip. Both ends of the two drying tubes on the left of purifier are plugged with degreasing cotton with allochroic silicagel in the middle. Screw the rubber plug tight to avoid air leakage. Preparation of electrolyte: Take 5g of potassium iodide and 5g of potassium bromide, dissolve both in 250～300 mlof distilled water. Then add 10 ml of glacial acetic acid into the solution, mix them until they are completely dissolved. The electrolyte may be used repeatedly. It shall be re-prepared in case of PH<1.
Operating steps:
1、Warming up: Open the feed window on the right side of the instrument and switch on. Then the printer will check itself and the feed motor will reset automatically to be on standby. The instrument will warm up automatically (without manual adjustment). For first use, it would be best to let the furnace warm up to 800℃and keep the temperature for 30min (please use the“Temperorature control” key on the panel. ). Then switch off and let the furnace cool to the room temperature. Start the instrument again and let the furnace warm up to the operating temperature of 1050℃.
2、Pour into or absorb electrolyte. Open the two-way valve and air pump. Adjust the flowmeter to 1000 ml/min.. Open the mixer and slowly adjust its rotating speed until the bubbles from solution plate are fully mixed with the electrolyte. Then the instrument enters the status of ready for experiment.
3、Take about 50mg±0.2mg of uniformly mixed sample from the porcelain boat. Cover a thin layer of tungsten trioxide over the coal sample. Put the porcelain boat on the quartz tray. Open“Electrolytic switch”press"start" key, input three-digit sample weight (no need to input digits after the decimal point), press"start" key again, the sample will be sent to combustion furnace again. Remain at 500℃and 1050℃respectively for the set durations. After then, return and print automatically. The whole experiment is executed by procedure automatically.
Take down the porcelain boat with tweezers (not by hand). Repeat step 3 for the second sample.
Note:(1)Prepare several waste samples before each test to balance the electrolyte, i.e. the right display window becomes to count, that is to say, the waste sample result is not zero before normal sample testing.
(2)During experiment, the“electrolytic switch” must be switched on, or no electrolysis will occur. It is prohibited to switch on the“electrolytic switch” when the electrolyte mixing is closed. It can only be switched on when the electrolyte is being mixed. Or else, it will pollute the electrode and affect the test precision.
(3)It would be best to carry out the test continuously. If there is a long interval between two tests, an additional waste sample shall be burnt before the latter test.
(4)After the experiment is over, press the“electrolytic switch”and close electrolysis, two-way valve, mixer and air pump. Discharge the electrolyte (best saved in brown grinding jar) for future use. Clean the electrolytic tank with distilled water. Switch off.

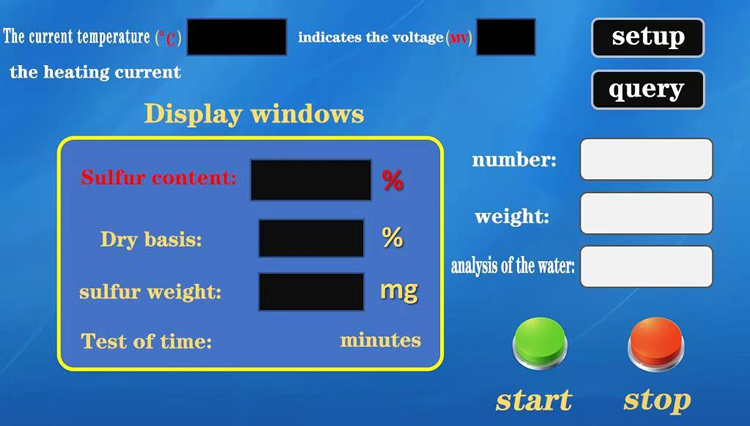

Touch screen operation instructions
Enter the experiment number, sample weight, moisture, etc., click "Start" to start the experiment, click "Stop" to end the experiment.
Click "Temperature Settings" and enter the setting temperature, such as 1050°

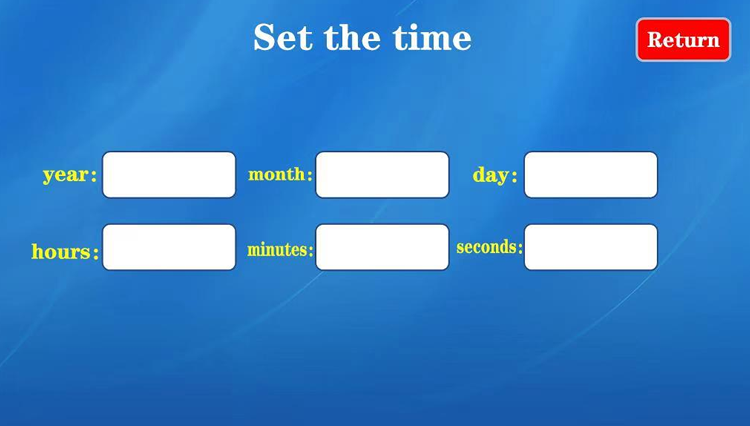

Click "Time Setting" to enter the time setting interface as shown below
Click the white box after the year and enter two digits after the year. For example, enter 20 in 2020
Click the white box after the month, enter the month, such as May, can enter 5
Click the white box after the date and enter the date. For example, enter 25
Click the white box behind, enter the hour, such as 7 o 'clock, can enter 7
Click the white box after minutes, enter minutes, such as 32 minutes, you can enter 32
Click the white box after seconds, enter the number of seconds, such as 12 seconds, can enter 12

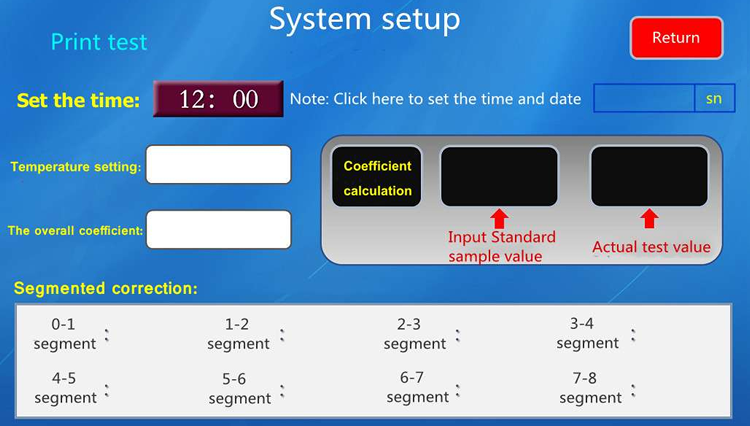

About the overall coefficient:
The instrument can be corrected through the touch screen to do overall high or low sulfur.It is equivalent to the internal integral gain potentiometer of old sulfur. The computer displays the coulomb integral count value multiplied by the integral gain coefficient as the result value and participates in the calculation, so as to achieve the overall effect of modifying the overall sulfur result to be higher or lower.If the global gain coefficient K=1.00, the count value will not be changed, and the result value is equal to the count value.If the overall gain coefficient K<1.00, the result value will be less than the calculated value, so as to achieve the overall low sulfur results.If the overall gain coefficient K>1.00, the result value will be greater than the calculated value, so as to achieve the overall high sulfur results.
When the instrument calibration, want to set the overall coefficient to 1, make the standard coal sample, and then input the standard value of the coal sample made in the standard value box, click "coefficient calculation", the instrument calculates the new coefficient, and automatically write into the overall coefficient box.You can also click the integral coefficient box to manually enter the integral coefficient.
Click on the upper right corner to return to the main screen and save the changed parameters.
Deviation table for subsection correction:
The instrument can also modify the deviation of a section separately, so that the result is closer to the effect of the standard sample value.The process is to add or subtract the deviation of the result value in a certain section, so as to achieve the effect of modifying the high or low sulfur result in that section. Positive deviation, the result plus the deviation value, so as to achieve the segment of the sulfur result is high. Negative deviation results in the reduction of the deviation value, so as to achieve low sulfur results in this section.

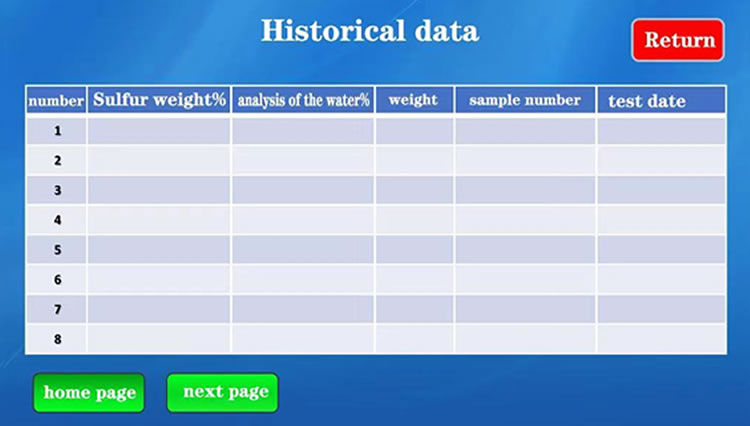

As shown in the historical data figure, you can query historical records.
